GoolRC APM2.5.2 APM2.6 Flight Control Board Pixhawk Power Module V1.0 Output BEC 3A Deans T Plug (Power Module,APM Power Module,Pixhawk Power Module V1.0)

upc:5.1975210022e+011

  • 5.1975210022e+011

brand_name:goolrc

  • goolrc

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews

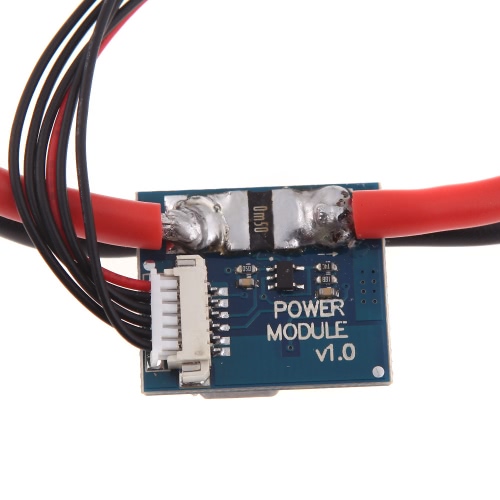

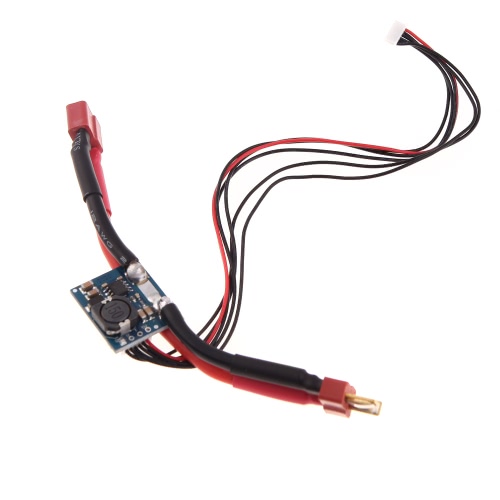

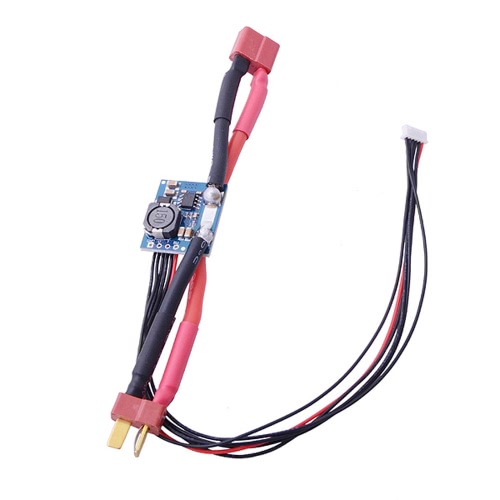

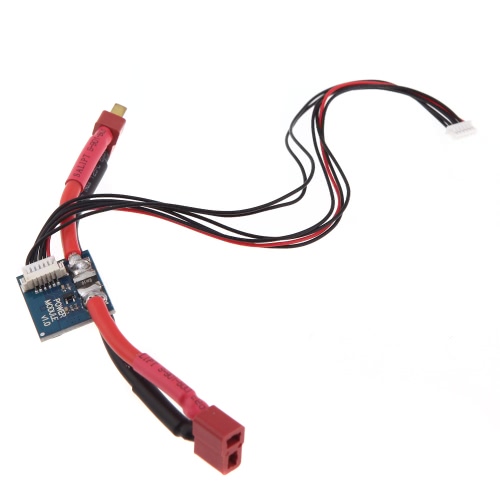

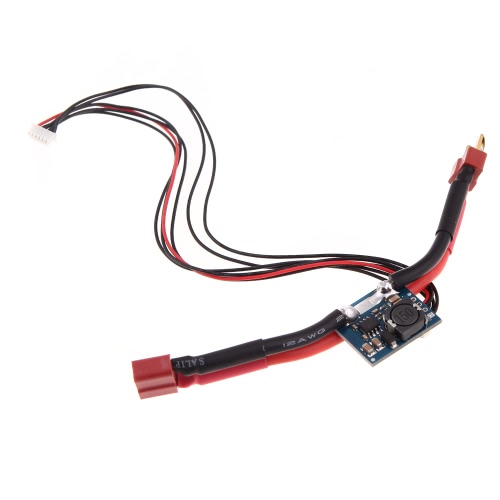

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.Special for APM2.5.2 APM2.6 Pixhawk flight controller.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Features:

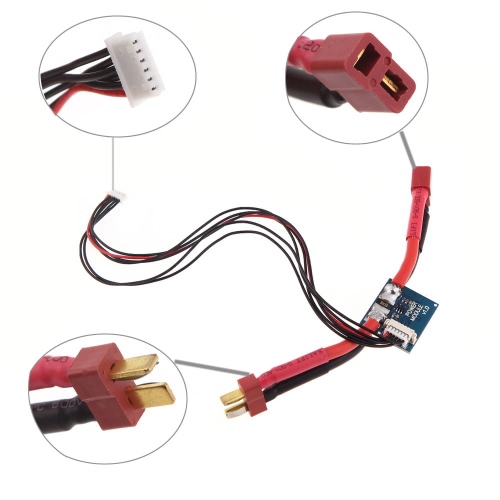

Deans Plug
Max input voltage: 30V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector

Specifications:
Package size: 12 * 8 * 2cm / 4.7 * 3.2 * 0.8in
Package weight: 24g / 0.8oz

Package list:
1 * APM Power Module V1.0 Output BEC 3A Deans T Plug
