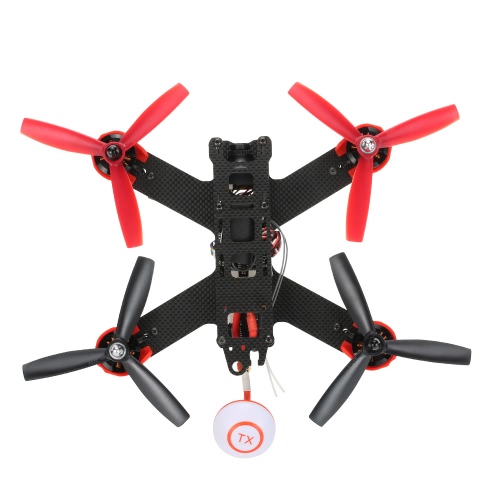

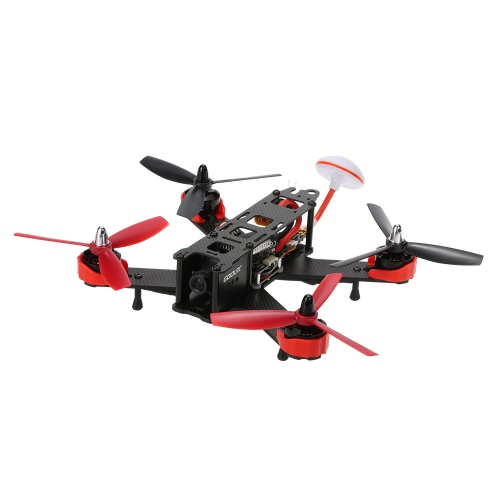

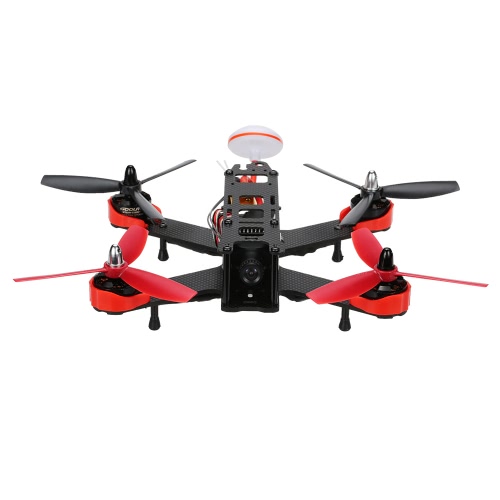

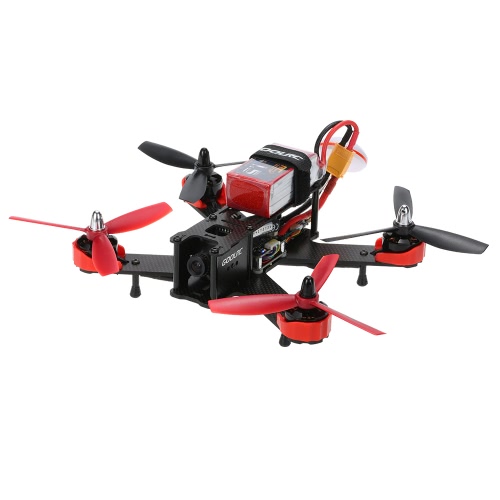

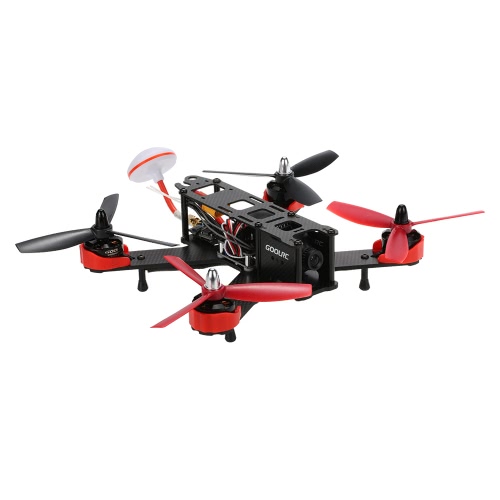

Original GoolRC 210 5.8G 700TVL Camera CC3D RC Racing Drone Quadcopter w/GC6 6CH Mode 2 2.4G Transmitter RTF FPV Version
- Overview
- FAQ
- Reviews
Features:
Made of anti-collision carbon fiber material.
Powerful motor 2204 2300kv and 5inch 3-blade propellers.
Bright LED light provide wonderful night flying experience.
Equipped with nylon bag, more convenience to carry.
Motor guards and landing legs can protect the drone effectively.
Opensource CC3D flight control system, setup flight parameter as you like.
700TVL HD camera with 5.8G 32ch transmitter provide you with a clean image and reliable link to your FPV goggles or monitors (not included).
Specifications:
Brand: GoolRC
Name: Racing Drone
Wheelbase: 210mm
Material: Carbon fiber
Motors: 2204 2300KV
ESC: 12A
Propellers: 5045 3-blade
Fight controller: Opensource CC3D
Transmitter: GC6 transmitter (mode 2)
Camera
Image device: 1/3 Inch COMS 960H EX view Sensor
System: NTSC 3.6mm
Resolution: 700TVL
Min. Illumination: 0.03 Lux / F1.0
Video Output: 1Vp-p / 75Ω
Power Requirements: DC 12V
Power Consumption: 80 mA
Image Transmission
5.8G 32Ch 200mW A/V Transmitter Module
Video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA @ 12V
Video band width: 8M
Audio coding: 6.5M
Antenna connection: RP-SMA jack (TX module side)
Battery for the transmitter: 4 * AA battery (not included)
Charger: B3 AC compact charger
Plug: EU/US optional
Battery: 11.1V 1500mAh LiPo battery with XT60 plug
Flying time: About 5-8 minutes
Charging time: About 60 minutes
Battery size: 75 * 35 * 25mm
Quadcopter size: 200 * 160 * 65mm/ 7.9 * 6.3 * 2.5in
Quadcopter weight: About 344g (battery not included)
There may be some deviation due to manual measurement.
Package Information:
Package size: 44.5 * 28.5 * 12.5cm / 17.5 * 11.2 * 4.9in
Package weight: 1771g / 3.9lb
Yellow box package

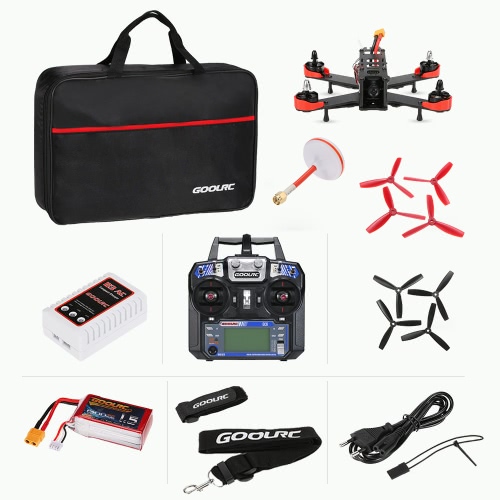

Package List:
1 * GoolRC 210 Racing Drone
1 * GC6 Remote Controller (mode 2)
1 * 700TVL Camera (built-in)
1 * 5.8G Mushroom Antenna
1 * 11.1V 1500mAh LiPo Battery
1 * Charger Cable
1 * B3 Charger
1 * Battery Strap
1 * Neck Strap
2 * Pair of Spare Prop
1 * Carrying Bag
